Collection of Layer Effects

Written by Dean Edis on .

In our first article we covered how we can write a simplified Photoshop-style API for displaying multiple textures on the screen, and we have since extended the code to several extra features:
Adding Parallax scrolling to your XNA code
Adding video layers to your XNA code
Reporting performance statistics in your XNA code
Adding 2D Pixel Effects to Layers

Our previous article extended the Layer code to allow a collection pixel shaders to be applied by the GPU. As promised, in this article I’ll deliver a collection of shaders which you can use in your code.

Adding 2D pixel effects to Layers

Written by Dean Edis on .

In our first article we covered how we can write a simplified Photoshop-style API for displaying multiple textures on the screen, and we have since extended the code to several extra features:

Adding Parallax scrolling to your XNA code
Adding video layers to your XNA code
Reporting performance statistics in your XNA code

We will now move on to another powerful addition to the Layer code - Effect filters. Photoshop (and similar applications) allow effects to be applied on a layer-by-layer basis - Blur, grayscale, bloom, lighten, darken, etc. The ability to chain together multiple filters can create some stunning visual effects, and as XNA allows us to run these on the graphics card’s GPU they can have a minimal impact on your CPU.

Initially I’ll provide a single simple effect filter for displaying a Layer as grayscale. In later articles I’ll extend the collection to include more. As always my aim is to make the Layer API simple to use, hiding as much complexity from the caller as possible.

The Music Of Lunar Panda

Written by Adrian Killens on .

For those interested in the music of Lunar Panda, I've spent the morning going through the stuff that I composed for the game and put it all together in a nice little SoundCloud playlist along with some screenshots of where the music gets used in the game. If you're working on any non-profit stuff and you want to use any of it then please feel free.

Reporting performance statistics in your XNA code

Written by Dean Edis on .

In our first article we covered how we can write a simplified Photoshop-style API for displaying multiple textures on the screen, and we have since extended the code to several extra features:

Adding Parallax scrolling to your XNA code
Adding video layers to your XNA code

In this article we will add a class which allows us to display a customizable collection of your application’s runtime statistics. Two of the most important pieces of information to keep an eye on during development of an XNA project are:
● Frames per second (FPS)
● Garbage collection activity (See our earlier article.)

Allocating memory unnecessarily can have a negative effect on performance, especially when targeting platforms such as the Xbox (which has a different Garbage Collection implementation that on Windows machines). Generally speaking the less garbage collection required, the better. By being able to see at runtime how many collections are being made, you can get an early ‘heads up’ on potential bottlenecks you might be adding.

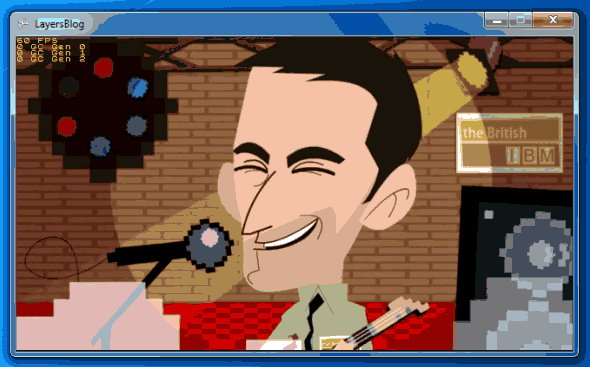

Here’s a screenshot showing a video playing on one layer, with another layer showing some runtime statistics:

The first line is fairly straight-forward - It displays your current frame rate (updated every 0.5 seconds). The next few lines show the total number of 0, 1, and 2 ‘generation’ of garbage collections. The example code is fairly light on memory allocations, so it may take a short while for the counts to start increasing.

As with any other of our Layer implementations, adding this new layer is trivial. Just create an instance of the new StatsLayer, and pass in the SpriteFont you wish to use for the display. I’ve included a hand-made font based on the ZX Spectrum, as it is clear and simple. For example (from the example code you can download below):

protected override void LoadContent()
{
 m_spriteBatch = new SpriteBatch(GraphicsDevice);
 // Define each layer.
 var videoLayer = new VideoLayer(Content.Load<Video>("Animal"), true)
 {
 AutoRepeat = true
 };

 var statsLayer = new StatsLayer(Content.Load<SpriteFont>("Speccy8x8"));
 // Create a Layers object, and define the order of the layers to display.
 m_rootLayers = new Layers();
 m_rootLayers.Add(videoLayer);
 m_rootLayers.Add(statsLayer);
}



Feel free to add to and customize the information that is displayed. For example, in some games you might like to display the number of on-screen sprites, sprite collisions, memory footprint, debug messages, etc… To do this just extend the StatsLayer code (or make a subclass which inherits from it):

public override void Draw(SpriteBatch spriteBatch)
{
 m_frameCount++;

var s = string.Format("{0} FPS\n{1} GC Gen 0\n{2} GC Gen 1\n{3} GC Gen 2", FPS,
GC.CollectionCount(0), GC.CollectionCount(1), GC.CollectionCount(2));
 spriteBatch.DrawString(m_font, s, Vector2.Zero, Color.Yellow);

 // Add your code here.

}

You can download the full source (including a pre-built sample application showing its usage) from the link below.

DOWNLOAD SOURCE
